Perkins has introduced important updates to the water pumps used across all Phaser and 1000 Series engines. These changes affect both 6-cylinder and 4-cylinder (AE type) engines, and they come with critical updates to components, assembly procedures, and key specifications.
Related Contents:
Perkins EST 2025A & 2023A & 2019A Software Free Download
Perkins SPI2 2018A EPC+Service Manual Free Download
Perkins adapter 3
What’s New?

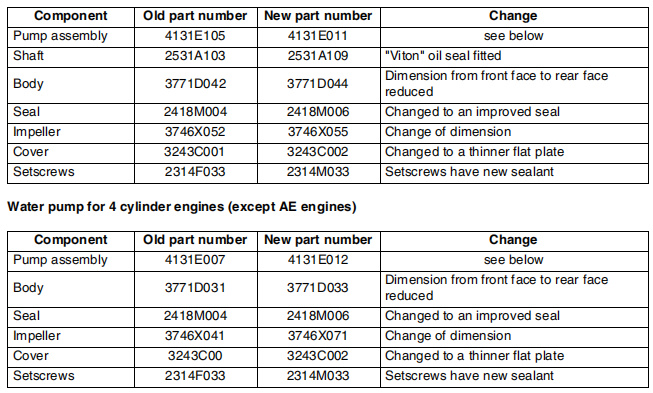

The newly introduced water pumps feature several design and assembly modifications:
✅ New Water Pump Models:
- For 6-cylinder engines
- For 4-cylinder AE engines
Important: The new pumps and old pumps are not interchangeable.
Assembly Procedure Changes
Some steps for dismantling and reassembling the new pumps differ from earlier models.
- Water Seal Installation:

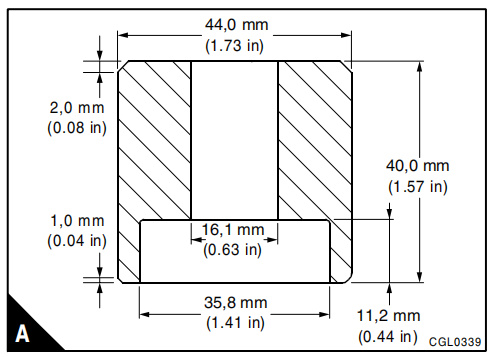

Use the special tool (Tool A, referenced on page 3, operation 21A-03 in the Workshop Manual) to correctly fit the water seal.- Previously, the impeller itself set the seal length.
- Note: The tool’s dimensions remain the same.
Dimensional Adjustments
A key design change is the reduction of the pump’s front-to-rear length by 1.0 mm (0.04 in), due to material being removed from the pump’s front face.

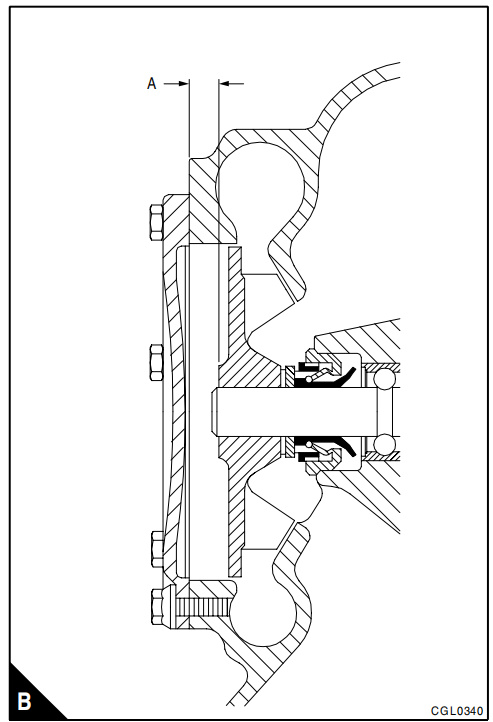

This affects dimension ‘A’ — the distance from the pump’s front face to the front face of the impeller — which is crucial for ensuring proper clearance between the impeller blades and the pump body.
Updated Dimension Specifications
| Engine Types | Earlier Pump (Part No.) | Dimension ‘A’ | Latest Pump (Part No.) | Dimension ‘A’ |
|---|---|---|---|---|
| AA, AB, AC, AD, AE | 4131E007 | 8.1–8.5 mm (0.31–0.33 in) | 4131E012, 4131E008 | 7.1–7.5 mm (0.28–0.30 in) |
| YA, YB, YD, YE | 4131E105 | 7.7–8.0 mm (0.30–0.31 in) | 4131E011 | 6.7–7.0 mm (0.26–0.28 in) |
Other Notable Changes
- Setscrew Sealant Update:
The sealant used on the cover’s setscrews has been upgraded, allowing the screws to be reused without applying fresh sealant. - AE Engine Procedure Alignment:

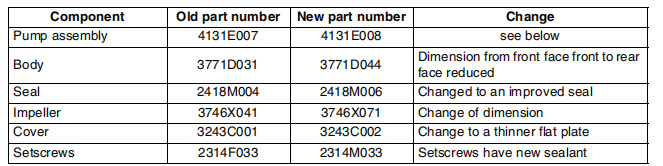

The assembly procedure for AE engines using the latest pump (part no. 4131E008) now matches the process for 6-cylinder (Y series) engines.
→ Refer to operation 21A-03A in the Detroit Diesel Phaser Workshop Manual.
→ This change applies starting from engine number A****U594297W**.
Implementation Timeline
These updates were introduced from:
- 4-cylinder engines → engine no. A******U594297W
- 6-cylinder engines → engine no. Y******U542894W

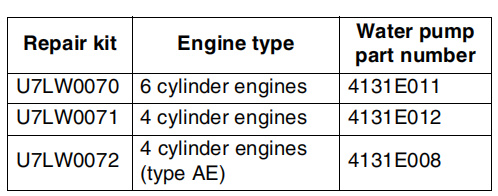

Repair kits are available for the new water pumps as listed below:
