Throttle Configuration on Perkins Engine (Using Electronic Service Tool/EST)

Engine Throttle Setup

Applicable Model: Perkins 1104D

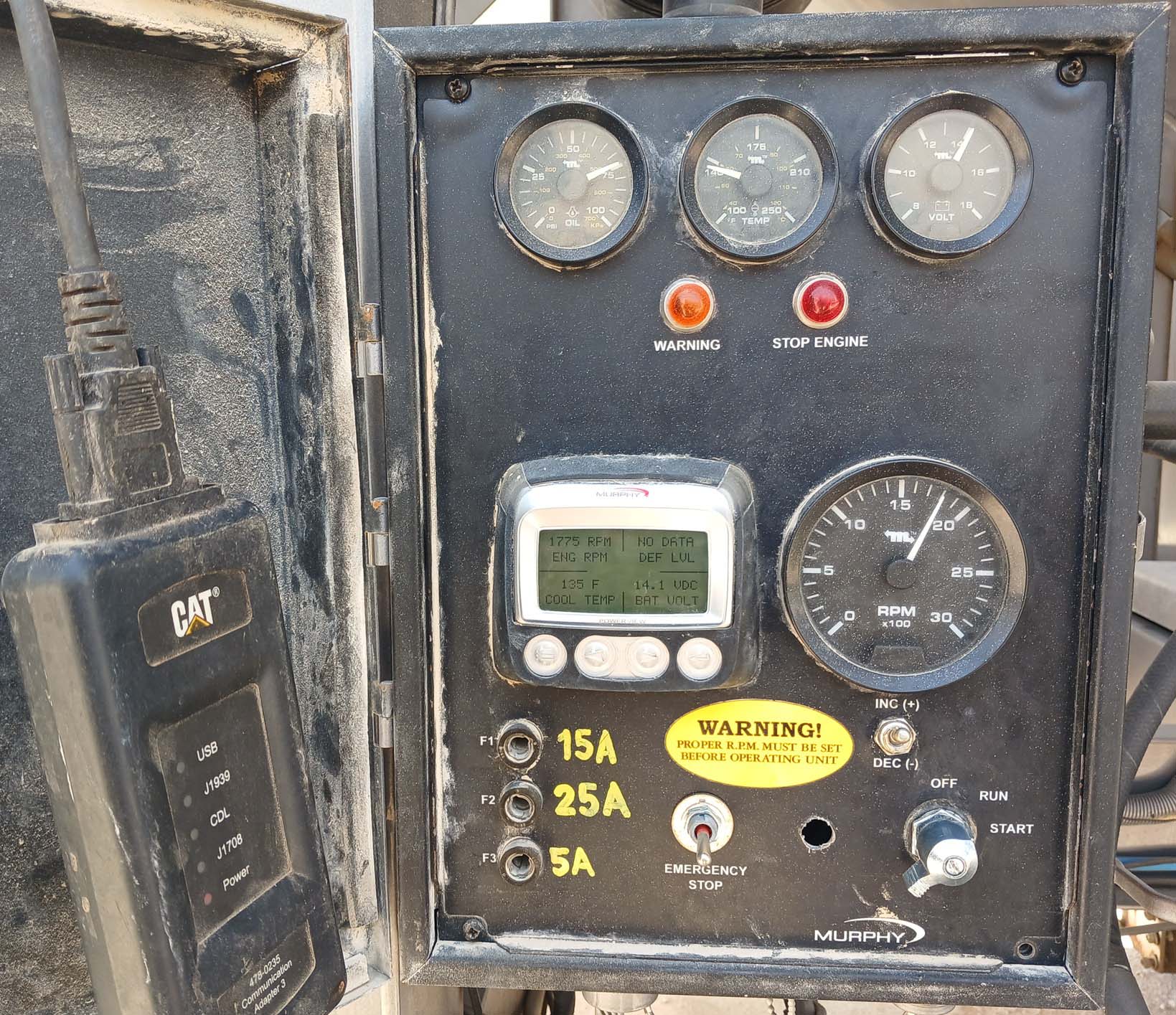

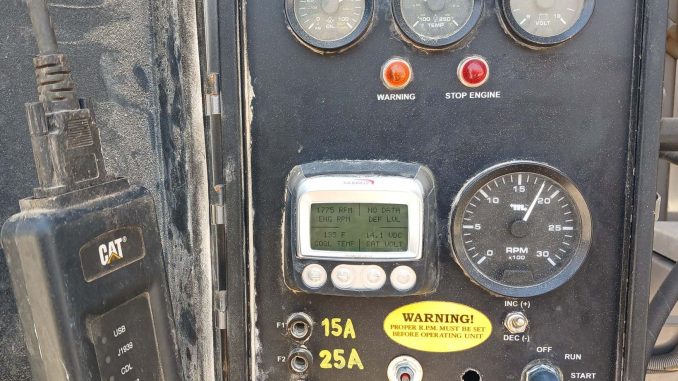

Refer to Figure 1.1 – Multi-position Switch

Purpose

The Throttle Configuration function within EST allows for setting up or modifying throttle types and arbitration methods. It supports configuration of up to three throttle inputs.

Accessing Throttle Configuration

To access this function:

1. Open the Service menu.
2. Select Throttle Configuration.
3. The Throttle Configuration screen will be displayed.
   Refer to Figure 1.2 – Throttle Configuration Screen

Screen Layout Overview

The Throttle Configuration interface consists of two main sections:

1. Tree Area

• Current Throttle Configuration Summary

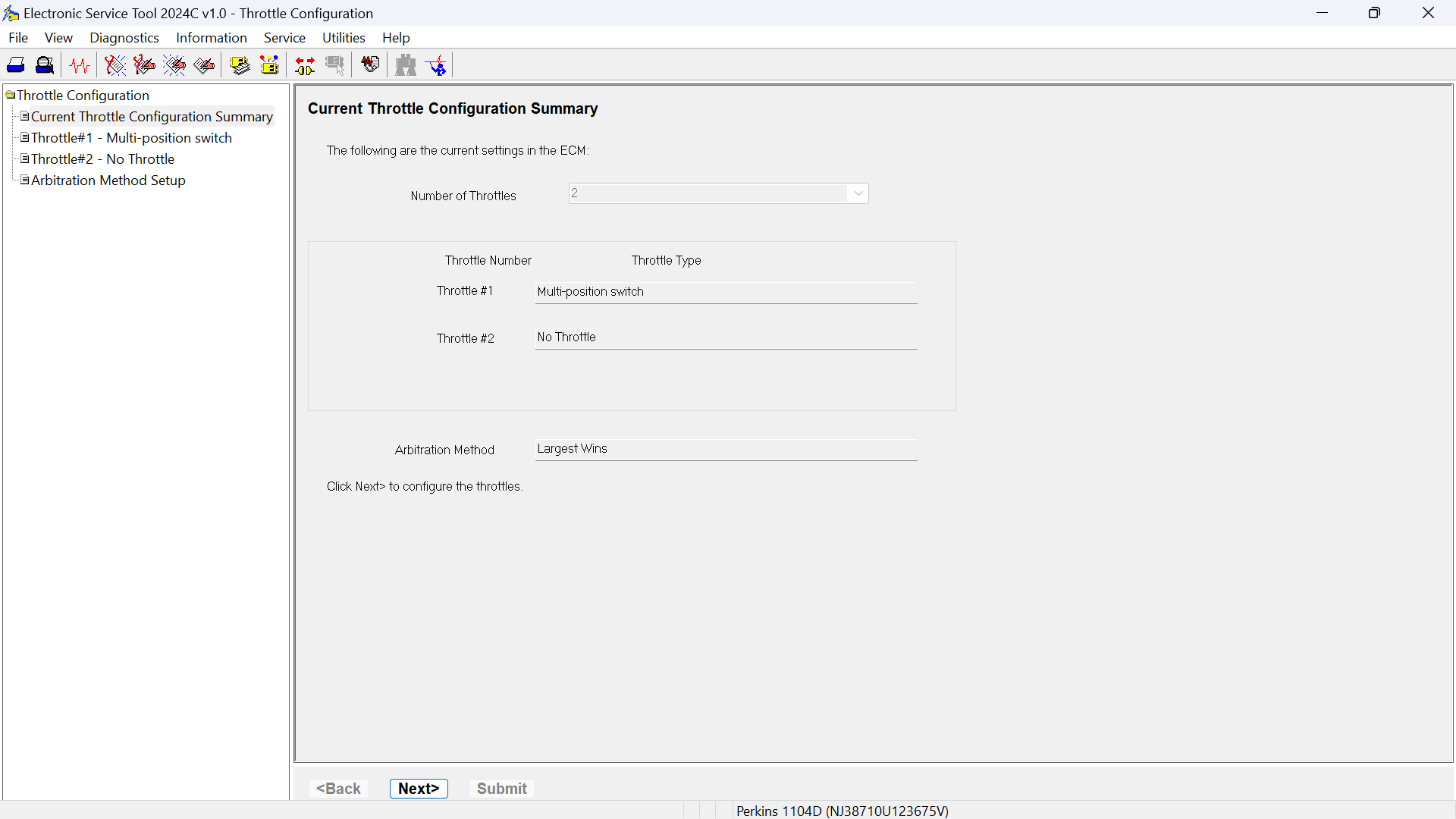

  Refer to Figure 1.3
•
  Displays an overview of existing throttle settings and arbitration method. Most fields are read-only except for the Number of Throttles field.
• Throttle #1 Setup

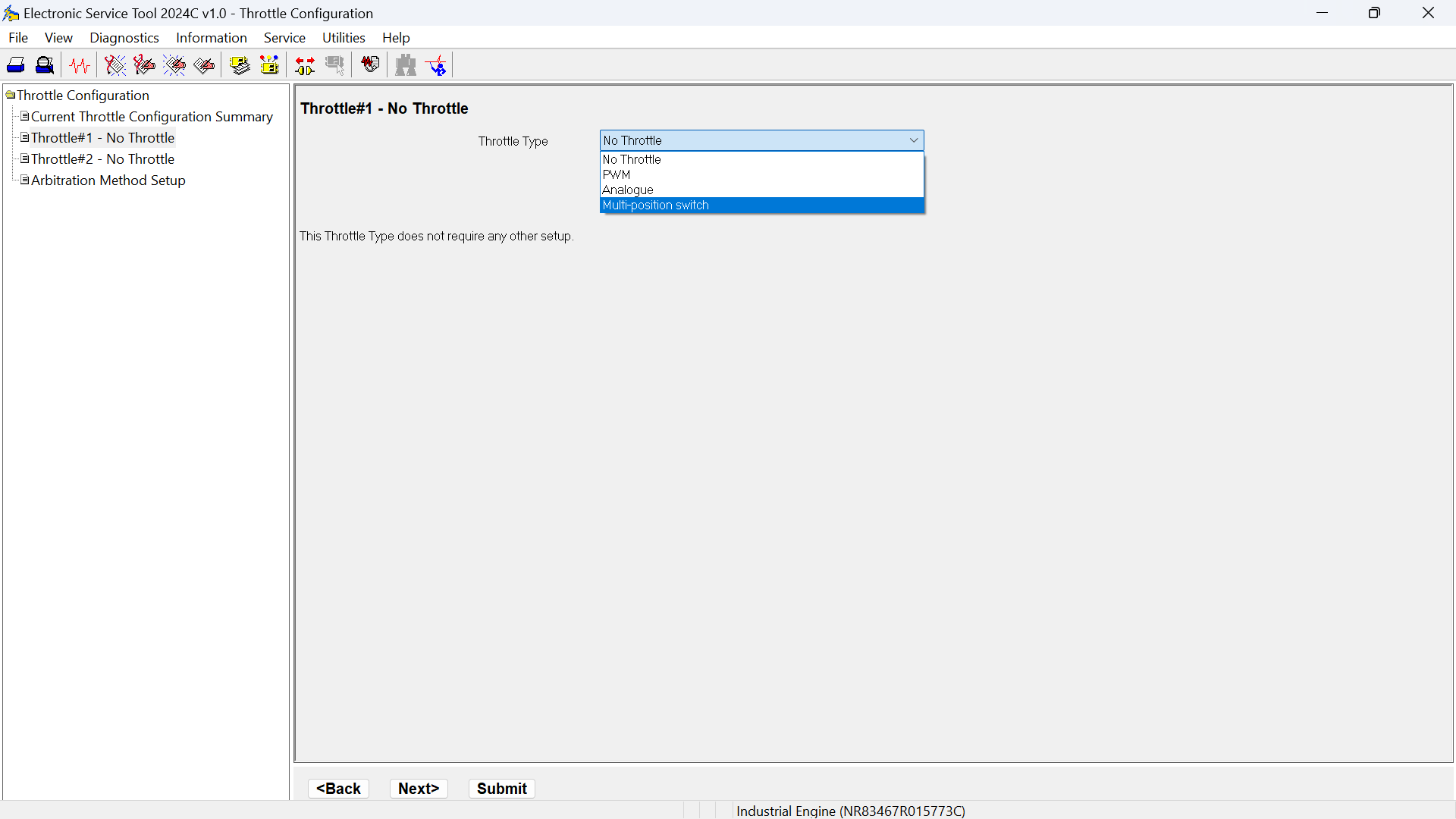

  Refer to Figure 1.4

  Throttle #1 can be configured using the following setup types:
  • No Throttle – Review or modify throttle settings.
  • Analogue and PWM – Modify settings specific to analogue or PWM signals.
  • Multi-position Switch – Select from one to four switch inputs for throttle control.

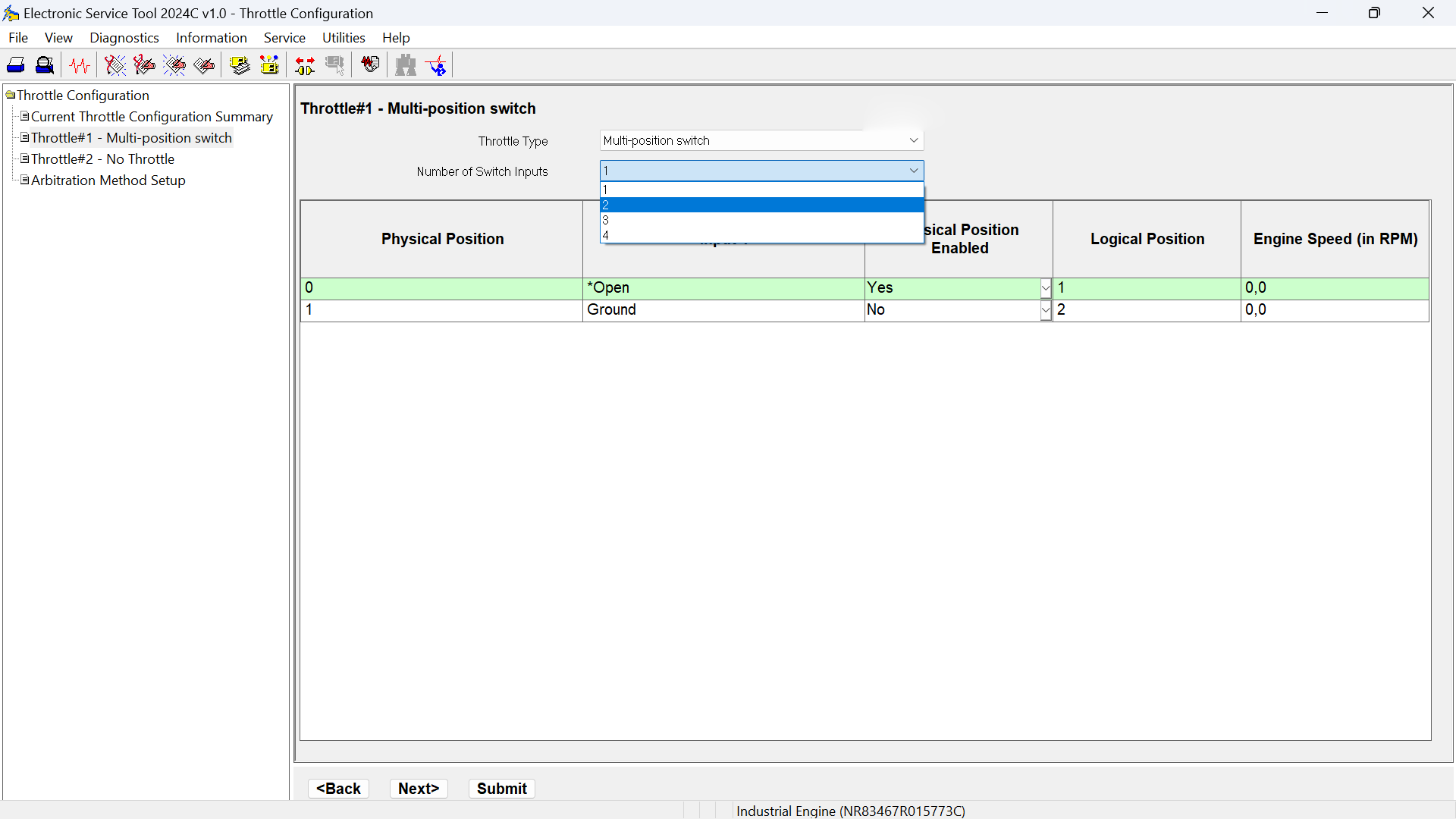

  Refer to Figure 1.5 – Multi-position Switch (2)

  Number of Switch Inputs:

  • 1 input = 2 positions
  • 2 inputs = 4 positions
  • 3 inputs = 8 positions
  • 4 inputs = 16 positions

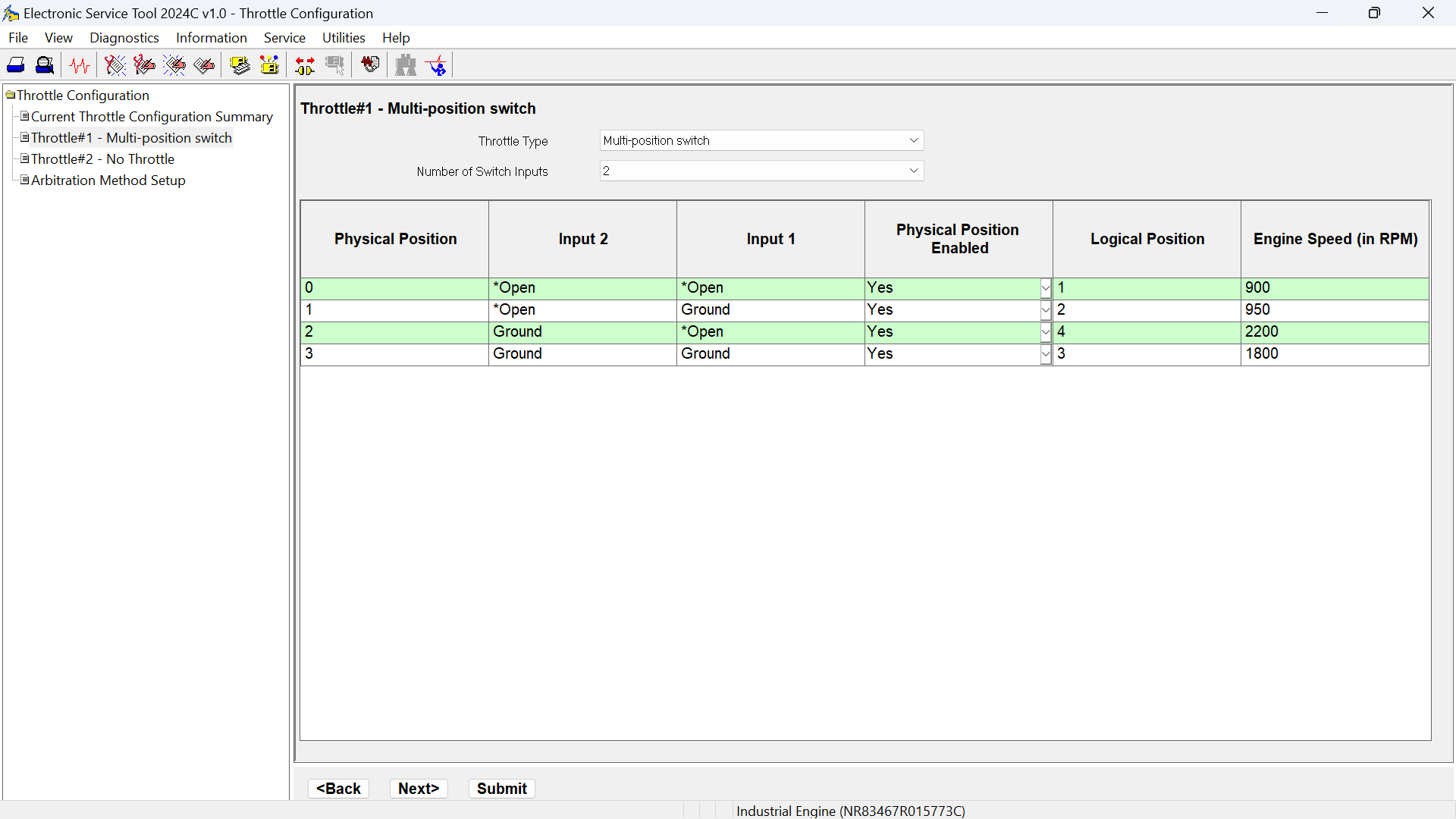

  Refer to Figure 1.6 – Switch Input Configuration


• Throttle #2
  Only visible if a second throttle is configured.
• Arbitration Method Setup
  Only displayed if more than one throttle is configured.
  This screen lets you define how multiple throttle inputs are prioritized.Available Arbitration Methods:
  • Manual – User-defined control.
  • Summing – ECM uses the sum of throttle values.
  • Largest Wins – ECM uses the highest throttle value.

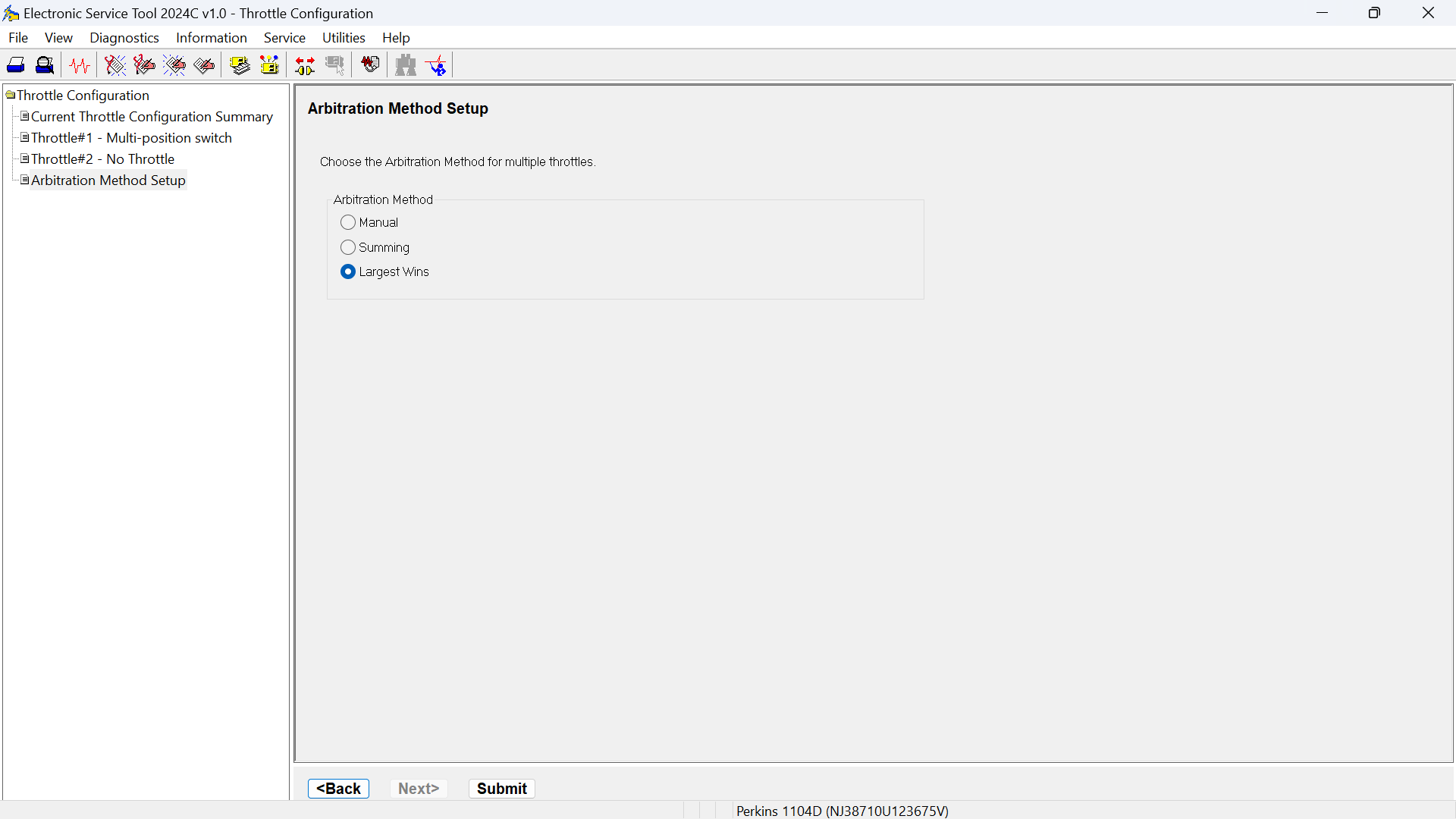

  Refer to Figure 1.7 – Arbitration Method: Largest Wins


2. Wizard Area

Located to the right (or below on smaller screens), the Wizard Area displays corresponding configuration details based on the Tree Area selection.

Available Buttons:

• <Back – Return to the previous screen.
• Next> – Proceed to the next screen.
• Submit – Save changes and send updated configuration to the ECM. (Disabled if screen is read-only)

This concludes the throttle configuration guide for Perkins engines using EST.
