How to Purchase and Use ID48 96-bit Chip Cloning Tokens for Launch X431

The ID48 96-bit transponder chip cloning feature is now available for compatible Launch X431 IMMO devices. To use this function, you must update your Launch X431 key programmer software to version V1.2.3 and purchase cloning tokens.

Supported Devices:

X431 PRO Series:

X431 PAD Series:

X431 PAD V
X431 PAD VII
X431 PAD IX

X431 IMMO Series:

CRP919BT Series:

CRP919EBT
CRP919XBT

Note: All of the above diagnostic tools must be used in combination with the X431 Key Programmer and an ID48 chip cloning token (point card).

How to Purchase Cloning Tokens

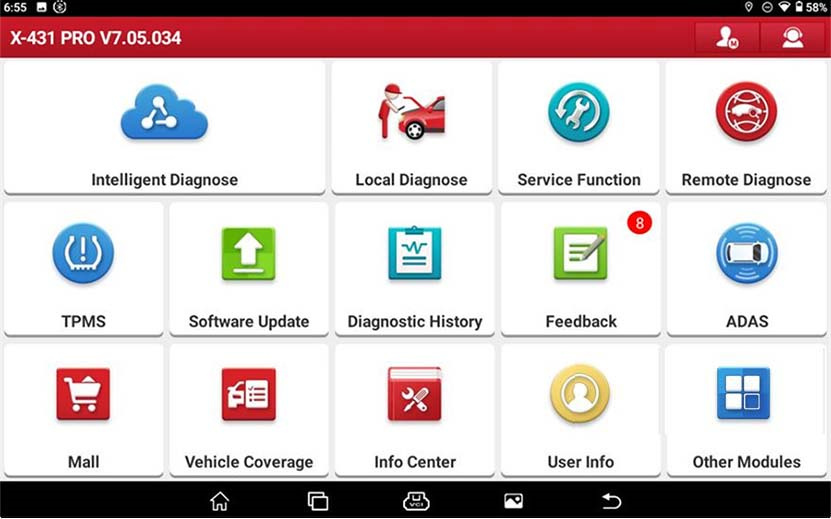

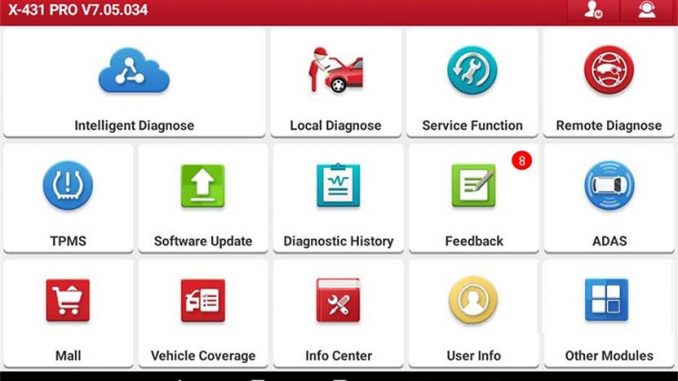

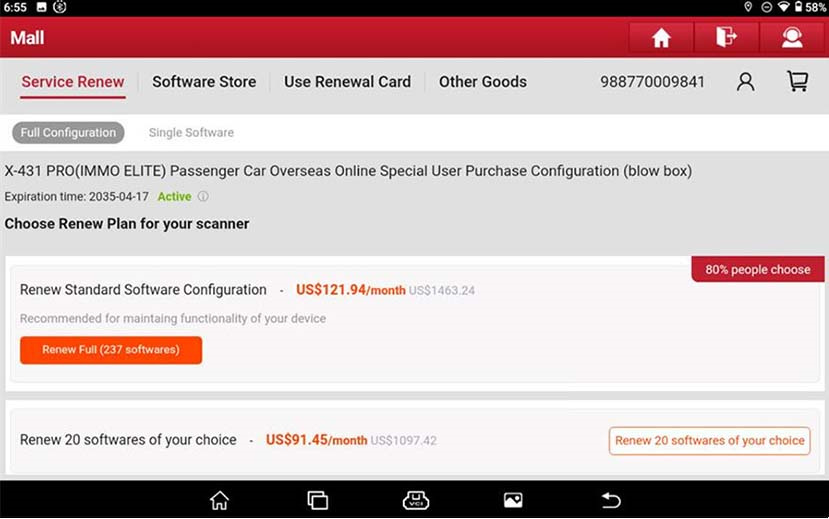

On your device, navigate to: Mall > Other Goods.

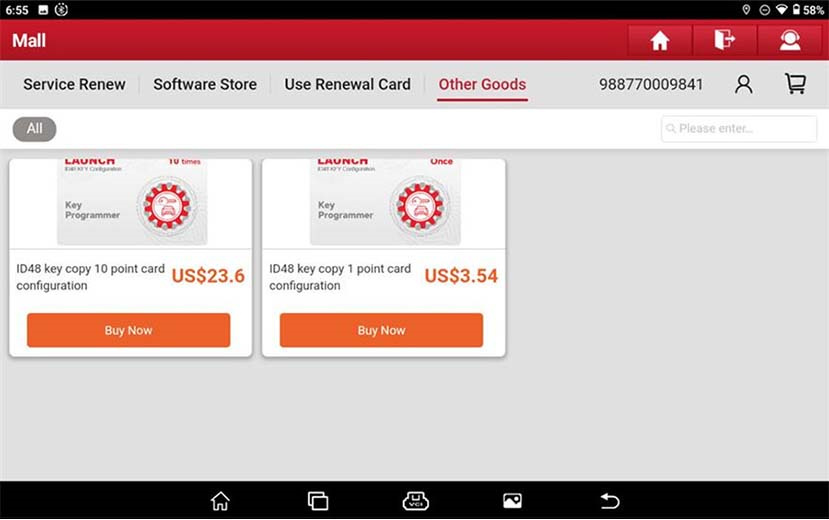

Choose from the available token cards:
- 1 Token (1-point card)
- 10 Tokens (10-point card)

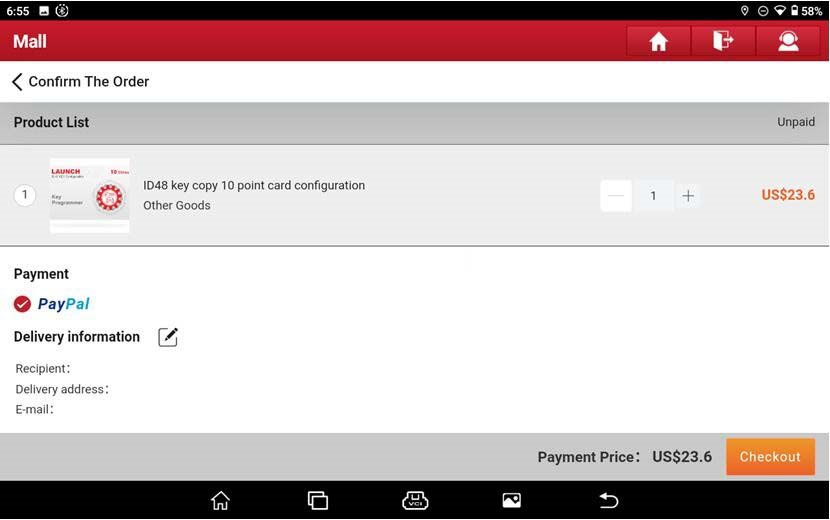

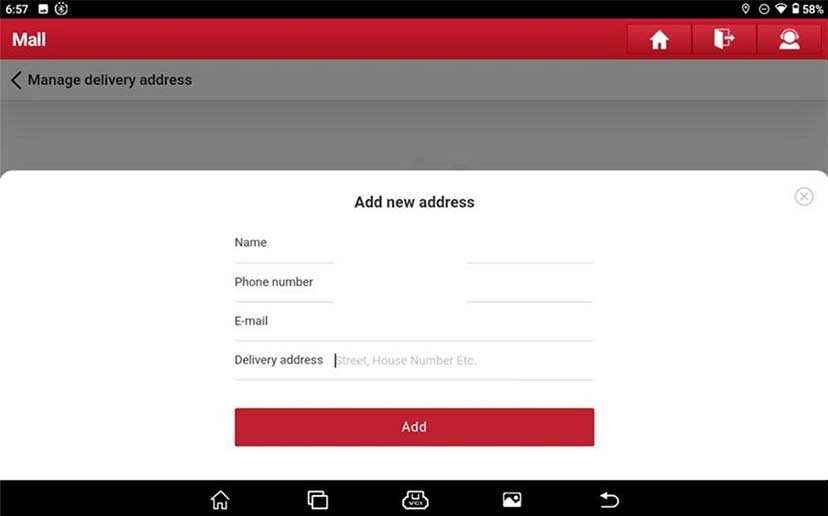

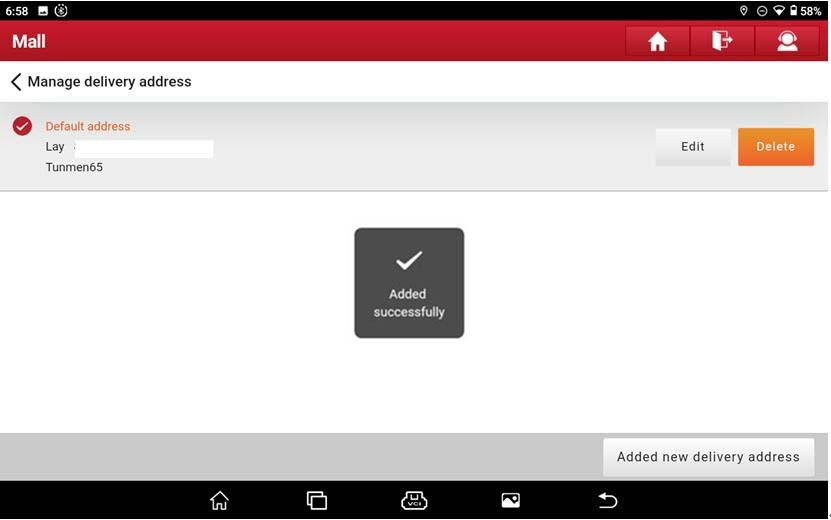

Enter your purchase details, including shipping and payment information.

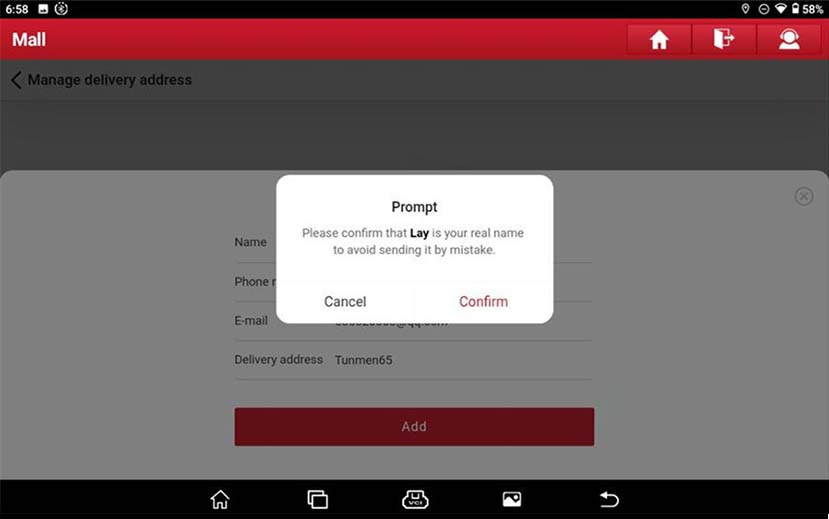

Confirm your details and name.
Complete the purchase and your account will be credited with the appropriate number of tokens.

You can now use the tokens for the ID48 96-bit chip cloning function.

How to Clone an ID48 96-bit Transponder Using Launch X431

Vehicle Example: 2010 Volkswagen

Step-by-Step Process:

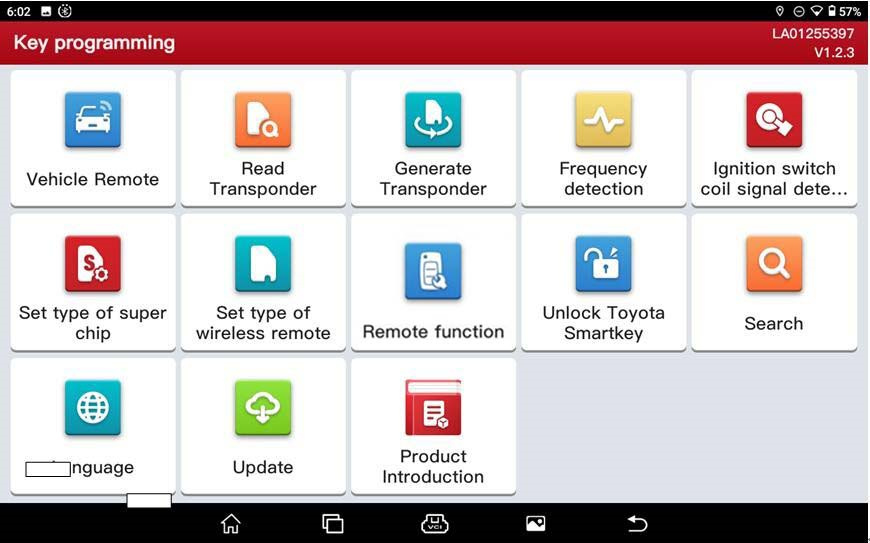

Go to the Key Programming menu and select Read Transponder.

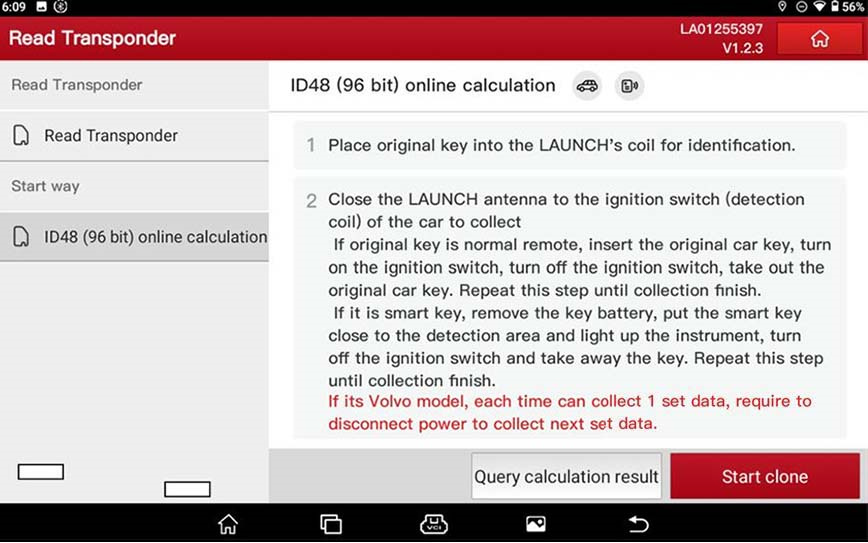

Navigate to ID48 (96-bit) Online Calculation Function.

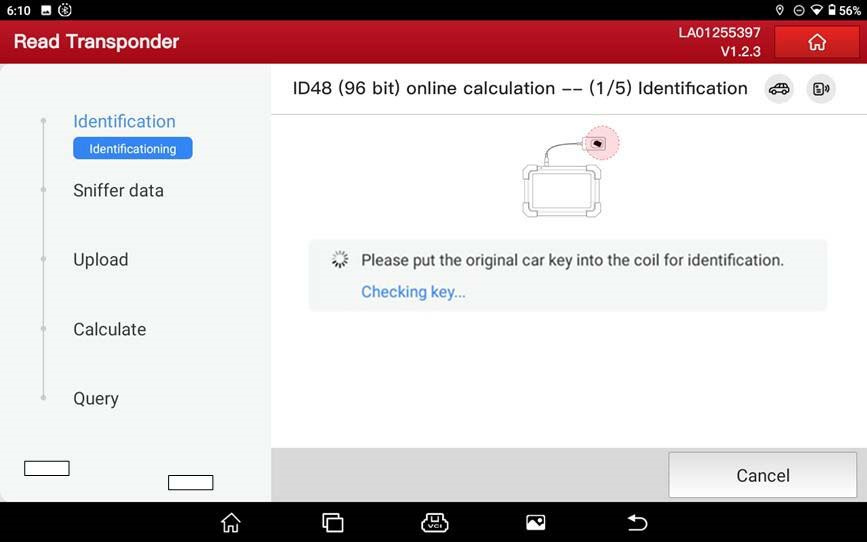

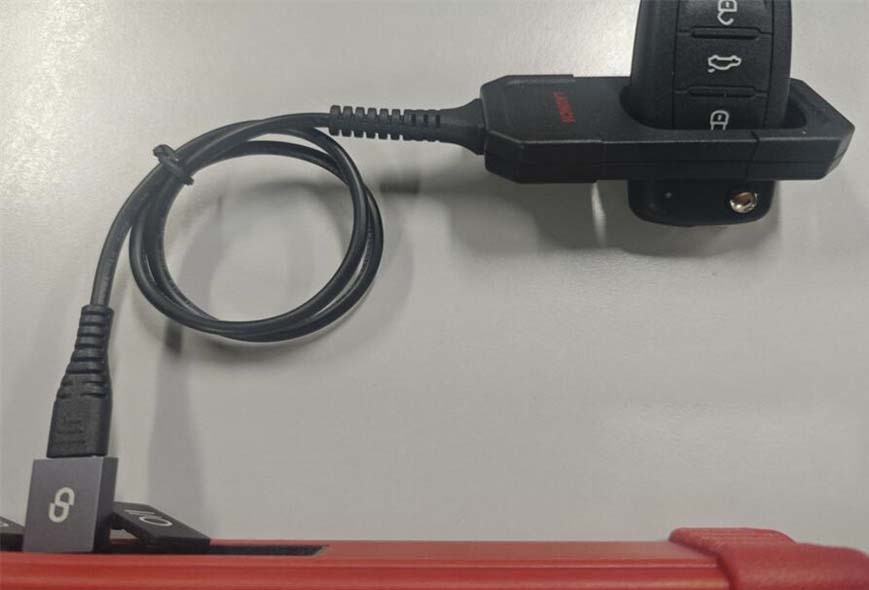

Insert the original key into the induction coil to read its information.

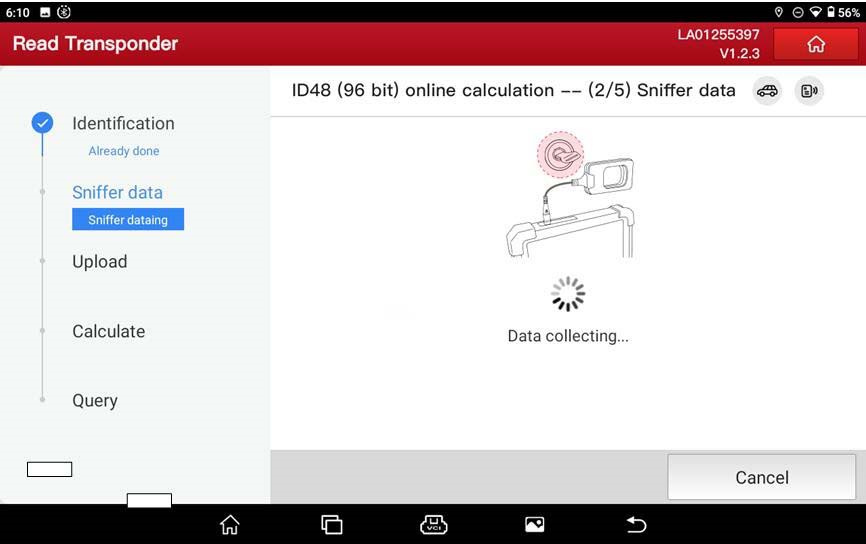

Begin the data collection process:

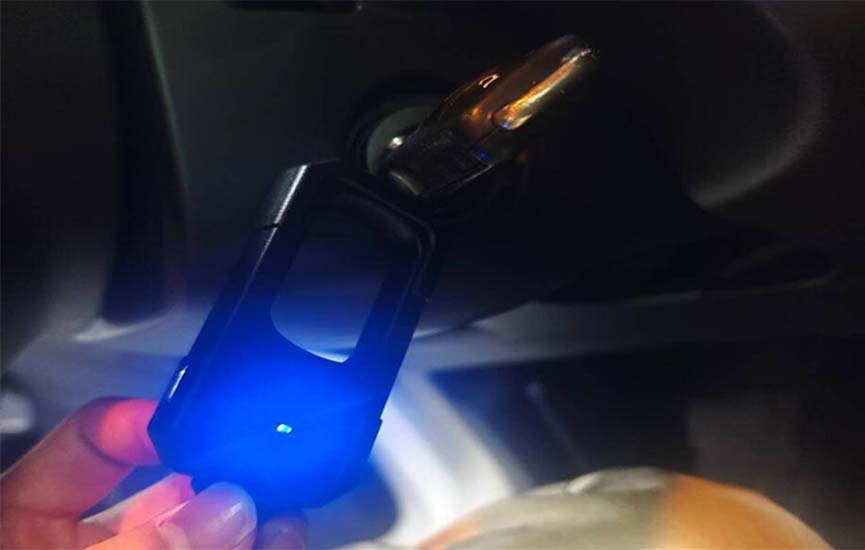

- Insert the original key into the ignition.
- Place the key programmer close to the ignition switch.
- Turn the ignition ON and then OFF.
- Repeat this process as prompted.

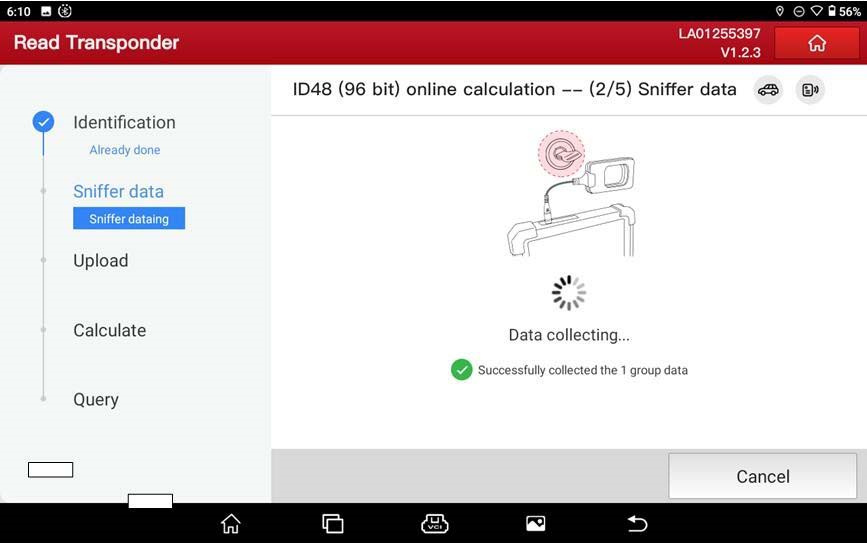

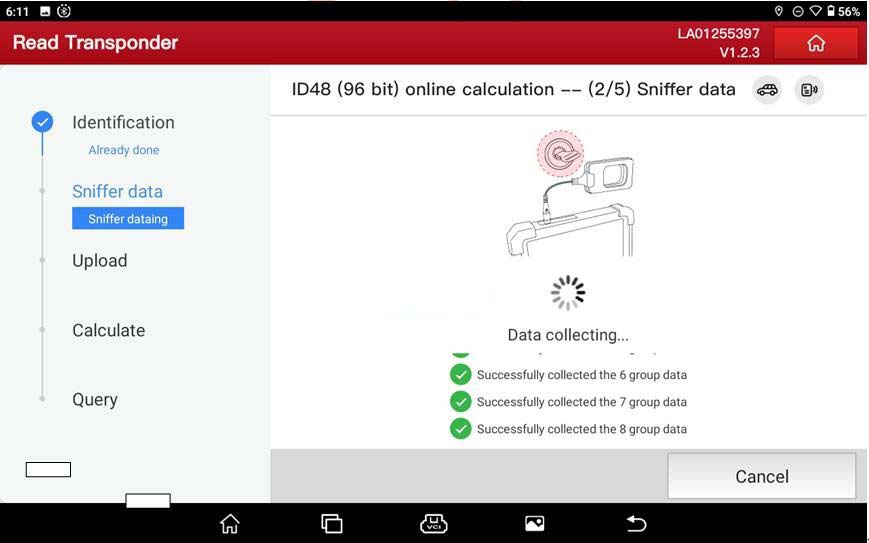

Successfully collect multiple sets of data (usually 8 sets in total).
Once all required data sets are collected, the device will proceed automatically.

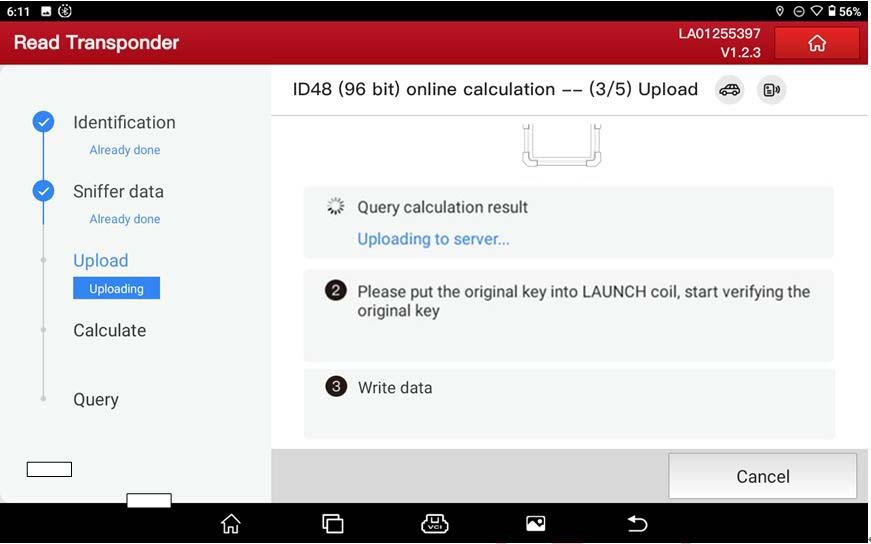

Upload the collected data and ensure you have a stable internet connection.

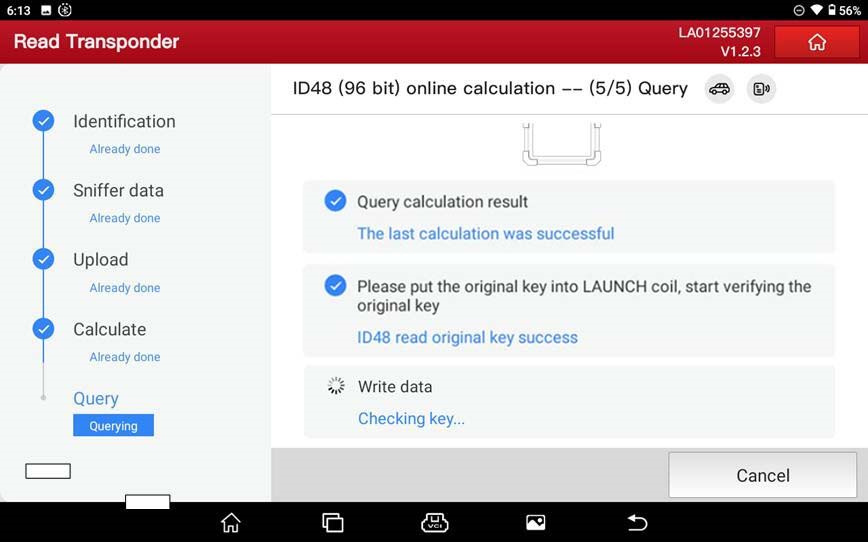

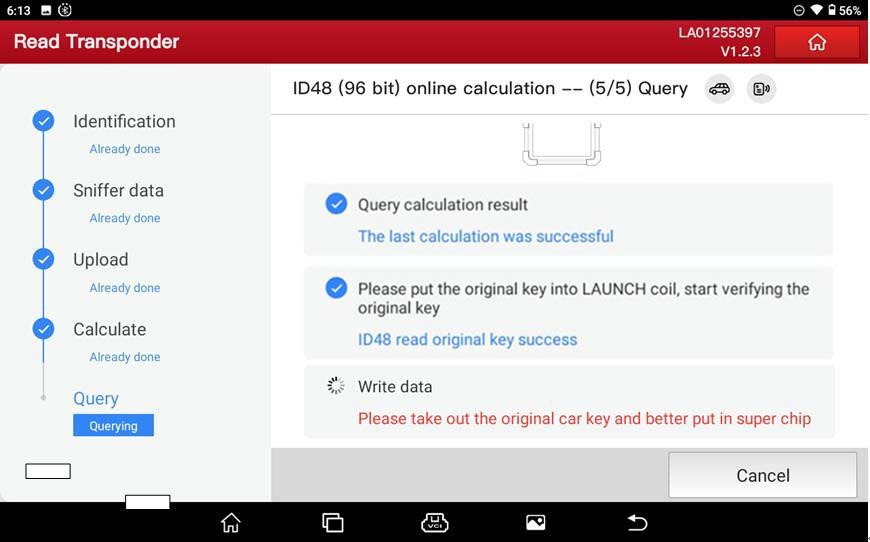

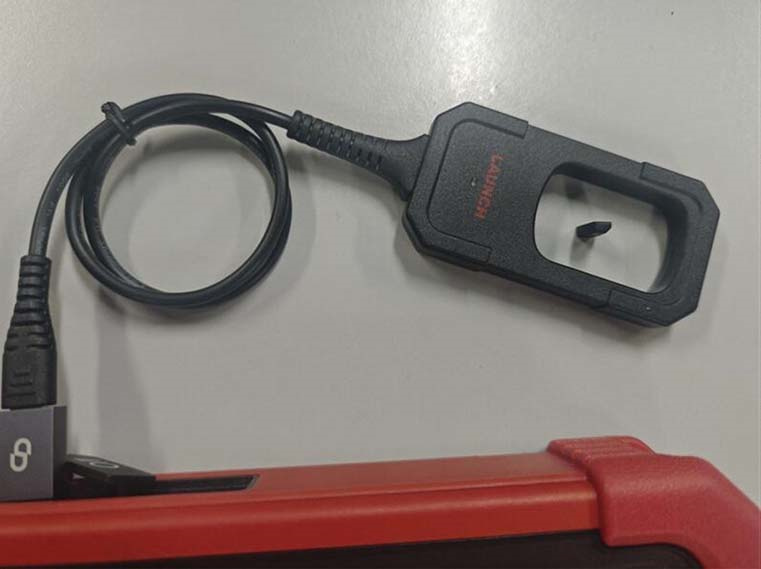

Insert the Launch Super Chip into the induction coil.

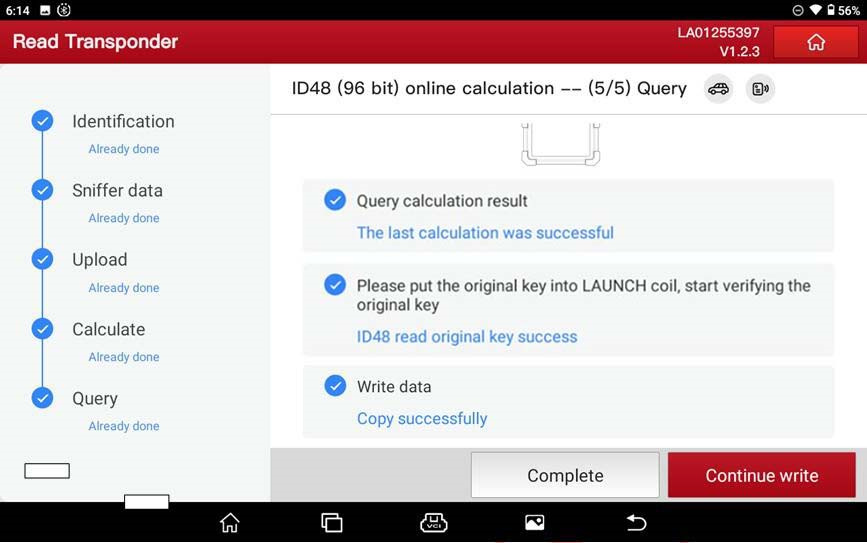

The data will be written to the Super Chip, and the cloning process will complete.
