IFM Moneo – Connecting and Configuring PV7601

Hardware Overview

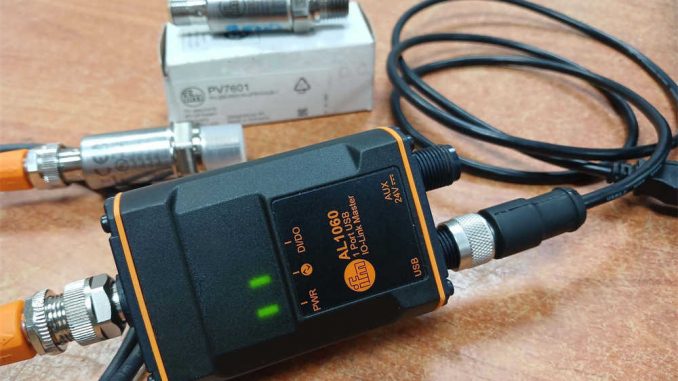

  • I/O-Link Master: IFM AL1060 (1 Port USB)
    Part No.: 2330-ZZ1060-ND (MFG P/N ZZ1060)
  • Interface: USB connection (Ethernet not supported in this process)

Step 1: Scan for the Device

  1. Launch IFM Moneo and log in.
  2. Go to Network Settings → USB Port.
      • Select I/O-Link Master E30390 or AL1060 connected via USB.
      • Note: The Ethernet network is not scanned in this mode.

  3. Choose Device Type: I/O-Link Master.
        • The system searches for devices connected to the selected port.
        • A progress bar shows scan progress.Click SCAN.

  4. When the scan completes, a list of detected devices will be displayed.
      • Device ports and connected sensors/actuators (e.g., PV7601) appear in the table.

  5. Select PV7601 to access its available functions.

Step 2: Set Device Parameters

    1. Adjust the required parameters for PV7601.
    2. Click WRITE CHANGES TO DEVICE to apply and activate the settings.
    3. To save the configuration for future use, click SAVE PARAMETER SET.

PV7601 is now successfully scanned, connected, and configured in IFM Moneo.
